1. Product introduction
YQF vertical fluorine
lined pipeline pump is ingeniously combined and designed on the basis of
general vertical pipeline pump and the corrosion resistance of
fluoroplastics. It has the characteristics of convenient installation
and corrosion resistance. This product has strong corrosion resistance,
can replace 316L stainless steel, titanium alloy and other precious
metals, and has the advantages of high efficiency, energy saving, low
noise, reliable performance, etc.

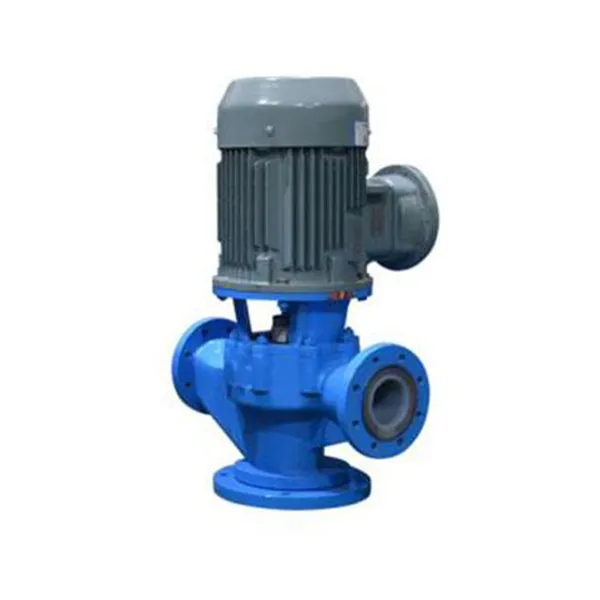

2. Product pictures
3. Scope of application
YQF fluorine lined
pipeline pump is suitable for long-term transportation of acid, alkali,
oxidant and other corrosive liquids of any concentration under the
temperature below 200 ℃. It is widely used in petroleum, chemical
industry, metallurgy, power, paper making, flue gas desulfurization,
dust removal, food, pharmacy, synthetic fiber and other industries.
4. Product Features
(1)
The pump is a vertical structure with the same inlet and outlet
diameters and located on the same centerline. If a protective cover is
added, it can be used outdoors.
(2) The impeller is directly
installed on the motor shaft, which can effectively balance the radial
and axial loads generated by the pump operation, thus ensuring the
operation balance of the pump and reducing the noise.
(3) The
bearing adopts ordinary and particle resistant mechanical seal, which is
corrosion resistant and wear-resistant, effectively increasing the
service life of mechanical seal.
(4) The series and parallel operation mode of pumps can be adopted according to the use requirements, i.e. the flow and head.

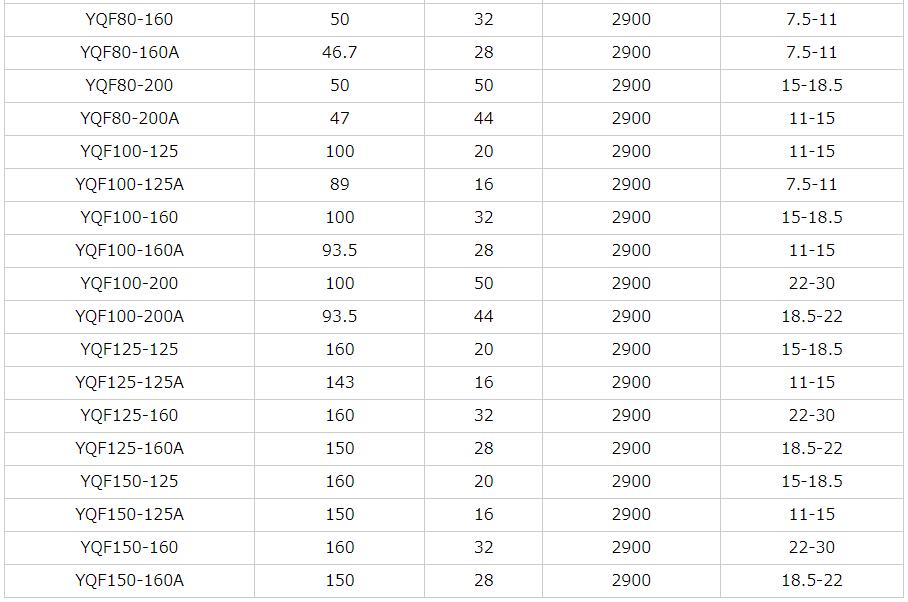

5. Model Meaning
7. Installation method
(1) The pump shall be
installed and fixed on a stable foundation. It is better to lay a
cushion between the base and the foundation. Ensure that the pump will
not affect the vibration of the pipeline when it is started. The pump is
not affected by other mechanical vibration.
(2) When installing
the pipeline, it shall be noted that the inlet and outlet pipelines of
the pump shall not exert force on the pump and shall be equipped with
corresponding supports.
(3) Valves shall be installed on the inlet
and outlet pipelines of the pump when the pump is installed under the
condition of reverse flow, and it is better to install pipeline
compensator. When the pump is under suction working condition, it is
required to install valves at the inlet and outlet of the pump.
(4)
Check whether the rotating parts of the pump are stuck or collided. If
the pump is collided during transportation, check whether the coupling
is concentric and adjust it.
(5) Sufficient maintenance space
shall be reserved for the pump during installation to facilitate
equipment maintenance in the later period.
8. Precautions
(1)
Before use, the pump shall be filled with enough liquid. It is strictly
forbidden to start the pump when there is no liquid or insufficient
liquid.
(2) Turn on the power supply, click the start switch first
to see whether the running direction of the motor is consistent with
the rotation direction of the pump. If not, correct it immediately, and
do not reverse it.
(3) The unit operates for 5-10 minutes. If there is no abnormal phenomenon, it can be put into operation.
(4) During shutdown, the outlet valve shall be closed first, and then the power supply shall be cut off.
9. Frequently Asked Questions
(1)
The reason why the water pump does not discharge water may be that
there is air in the pump chamber, the suction head is too high or the
suction pipe is too long.
(2) Insufficient pump flow may be caused
by partial blockage of pipes and impeller of pump flow passage,
insufficient valve opening, etc.
(3) Excessive pump power may be used beyond the rated flow.
(4) Noise and vibration may be caused by unstable pipeline support, gas mixed with liquid, bearing damage, etc.
(5) Pump leakage may be caused by mechanical seal damage or loose connecting bolts.
10. Use needs
(1)
For pumps with high lift, check valves shall be installed on the outlet
pipeline to prevent water hammer damage caused by sudden shutdown.
(2) If cavitation occurs when the pump is running, it must be stopped within 1 minute.
(3) When the pump is shut down for a long time, the inner flow passage of the pump shall be cleaned.
(4)
If the power is cut off suddenly when the pump is running, the power
must be turned off immediately and the outlet valve must be closed.
(5)
The noise of the pump is ≤ 95dB. In case of vibration and noise, the
pump should be shut down for inspection and troubleshooting before
operation
YQF highway construction
YQF Highway Construction is a leading provider of high-quality road and highway development services, offering durable, efficient, and sustainable infrastructure solutions. With expertise in pavement engineering, earthworks, asphalt technology, and road safety design, YQF ensures that every project meets international quality and safety standards.
Product Overview
The YQF Highway Construction solutions are designed to deliver long-lasting highways and roads with enhanced traffic efficiency and reduced maintenance costs. Utilizing modern construction methods and environmentally friendly materials, YQF is committed to building reliable infrastructure that supports economic development and community connectivity.
Key Features:
Durable road surfaces resistant to heavy traffic and environmental wear
Advanced asphalt and concrete technologies for smoother rides and reduced noise
Sustainable and eco-friendly construction practices
Customizable solutions for urban, rural, and highway projects
Comprehensive project management from design to completion
Typical Applications:
Urban roadways and city streets
National and regional highways
Industrial access roads and logistic corridors
Bridge and overpass construction
Pavement rehabilitation and maintenance projects
Usage Guidelines
Proper usage and construction practices are essential to ensure long-term performance and structural safety of highways.
Road Surface Preparation:
Site Assessment – Evaluate soil quality, terrain, and drainage conditions.
Base Layer Construction – Compact subgrade layers to provide a solid foundation.
Material Selection – Use high-quality aggregates, asphalt, or concrete based on project requirements.
Paving Instructions:
Ensure proper mixing and temperature control for asphalt or concrete.
Layering and compaction should follow recommended thickness and density standards.
Monitor curing times and traffic restrictions to prevent early damage.
Maintenance Tips:
Regular inspection of cracks, potholes, and surface wear.
Timely repairs to prevent further deterioration.
Implement drainage solutions to avoid water-related damage.
Packaging and Material Handling
While highways themselves are constructed in place, the materials used for construction are delivered and stored according to strict packaging and handling standards.
| Material Type | Packaging / Delivery | Storage Recommendations | Notes |
|---|
| Asphalt Mix | Heated transport trucks | Store in heated bins or silos | Maintain temperature to prevent curing |
| Aggregates | Bulk bags or trucks | Covered storage to avoid moisture | Sort by size for grading efficiency |
| Cement | 50kg bags / bulk silos | Dry, ventilated storage | Avoid exposure to humidity |
| Bitumen | Tanker transport | Heated storage tanks | Keep temperature above flow point |
| Additives | Sealed containers | Cool, dry storage | Follow manufacturer’s instructions |
Proper handling ensures material integrity, performance, and safety during the construction process.
Application Areas
YQF Highway Construction services are suitable for a wide range of infrastructure projects, including:
Urban Infrastructure:
City streets, traffic corridors, and pedestrian pathways
Parking facilities and urban logistics roads
Enhances mobility and reduces traffic congestion
National and Regional Highways:
Multi-lane highways connecting major cities
Designed for high-speed traffic and heavy loads
Meets international standards for safety and durability
Industrial Roads:
Access roads for factories, logistics centers, and ports
Capable of supporting heavy-duty vehicles and continuous traffic
Rehabilitation Projects:
Storage and Environmental Considerations
Proper storage and handling of construction materials are critical to ensure optimal performance and safety.
Cement and additives must be stored in dry, ventilated areas to prevent moisture absorption.
Aggregates should be kept covered to avoid contamination by dust or water.
Asphalt and bitumen require temperature-controlled storage to maintain workability.
Follow environmental guidelines to reduce dust, runoff, and waste during storage and handling.
Proper labeling and separation of materials prevent cross-contamination and ensure quality control.
Quality Assurance
YQF adheres to strict quality management systems to ensure every project meets industry standards.
Inspection and Testing:
Soil and subgrade testing for load-bearing capacity
Material quality checks for aggregates, asphalt, and cement
Compaction and density testing of road layers
Surface smoothness and skid resistance evaluation
Certifications and Compliance:
ISO 9001 Quality Management Certification
Compliance with national and regional highway standards
Environmental compliance certifications for sustainable construction practices
Advantages of YQF Highway Construction
Durability and Longevity – Roads built to withstand heavy traffic and extreme weather.
Safety-Oriented Design – Incorporates proper drainage, signage, and lane marking for traffic safety.
Eco-Friendly Practices – Use of recycled materials and controlled emissions during construction.
Customizable Solutions – Tailored design for urban, rural, industrial, or highway projects.
Professional Project Management – From planning, design, construction, to maintenance support.
Conclusion
YQF Highway Construction offers comprehensive road and highway solutions designed for safety, durability, and efficiency. By following proper usage guidelines, material handling practices, and maintenance procedures, YQF ensures that every highway and road provides long-lasting service, cost-effectiveness, and environmental compliance.
Whether for urban infrastructure, national highways, or industrial roads, YQF combines advanced technology, quality materials, and professional management to deliver high-performance road construction projects.
