1. Product introduction
ISGB detachable
pipeline centrifugal pump is a product with novel structure and advanced
technology developed on the basis of ISG pump. This vertical pump,
especially in its overall structure, has made a bold breakthrough in
design. It uses independent bearing body and pump shaft support to solve
the shortcomings of the original vertical pump supported by motor
bearings. The impeller and pump body are designed and manufactured using
the best modern hydraulic model, eliminating the shortcomings of the
original vertical pump with large axial force; Y series standard
universal motor is adopted for the motor, which solves the problem of
difficult replacement of the original vertical pump extended shaft
motor; meanwhile, the 100% removable structure solves the problem of
replacing the bearing, mechanical seal, impeller and pump shaft of the
high-power pump.

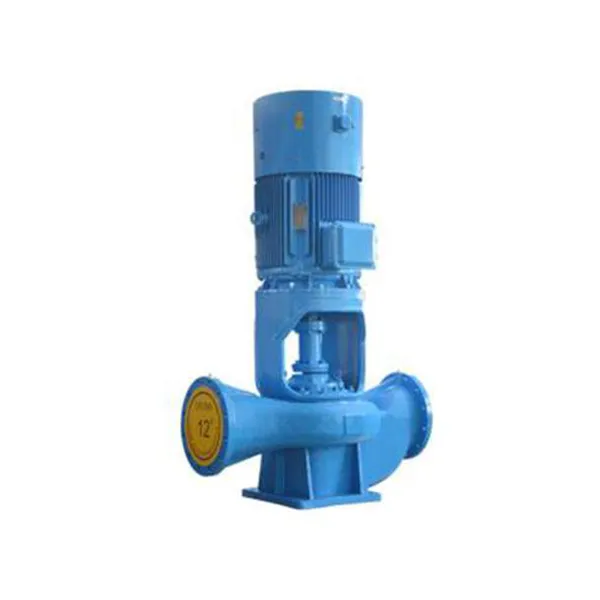

2. Product pictures
3. Scope of application
ISGB detachable
pipeline centrifugal pump: mainly used for industrial and boiler system
transportation, urban high-rise building water supply, fire pipeline
pressurization, HVAC cold and hot water circulation, long-distance water
transportation and production process circulation pressurization. TTHB
detachable single-stage chemical pump: it is suitable for pressurized
circulation of high-temperature hot water for boilers in metallurgy,
chemical industry, textile, wood processing, paper making, hotels,
bathrooms, hotels, etc., as well as heat supply pumps for urban heating
systems.
4. Product Features
1. Vertical
structure, convenient for installation and commissioning. The specially
designed motor and pump body are connected by connecting body, with
concentric height and high processing accuracy. The floor area is
greatly reduced, reducing the construction investment.
2. The feet
are stable and compact, and the exquisite casting and appearance
treatment give the vertical centrifugal pump a new aesthetic feeling.
3.
The removable claw type elastic coupling makes the pump start without
vibration and noise. The rotating parts can also be equipped with a
reliable safety shield with excellent safety.
4. The bearings are
precision bearings of international famous brands with high precision,
good reliability and long service life.
5. Model Meaning

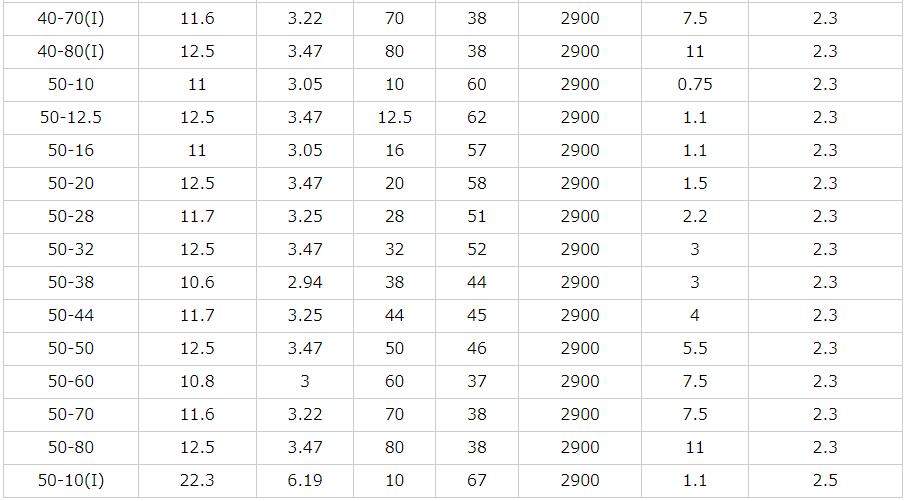

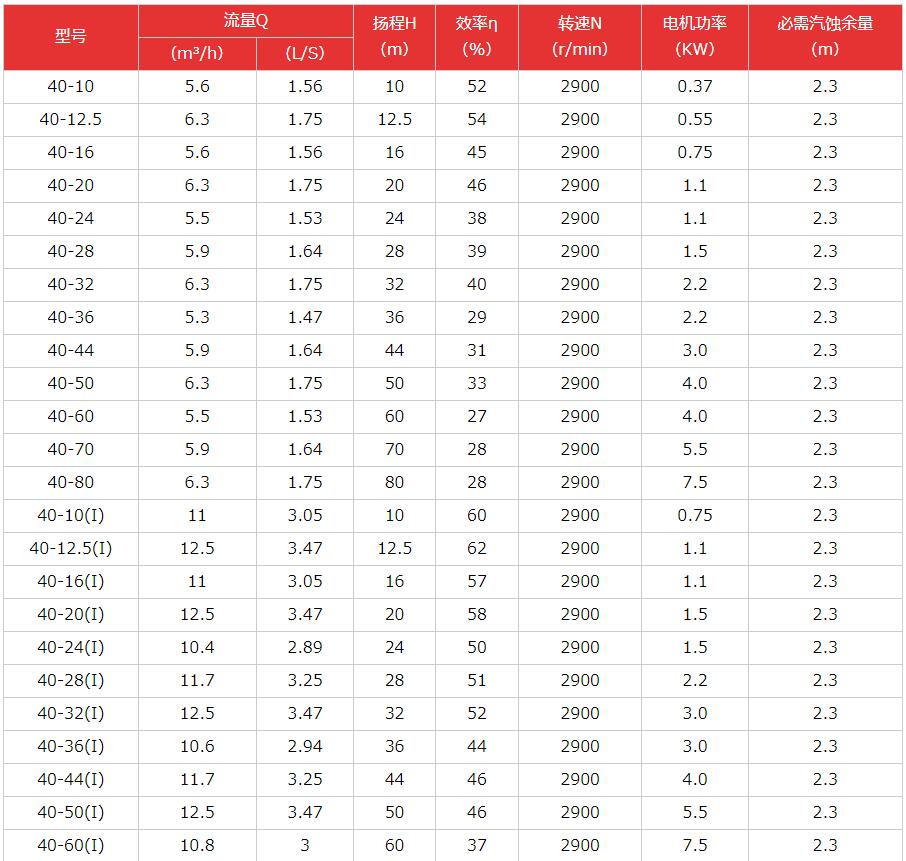

6. Specifications
7. Installation method
(1) The weight of the
pipeline shall not be added to the water pump during the installation of
the removable pipeline pump, so as to prevent the pump from deforming
and affecting the operating performance and life.
(2) It is better
to install anti-seismic fasteners on both sides of the pump and between
the foundation and the pump body to minimize the possible noise
generated by the pump.
(3) The pump and motor are of integral
structure, so alignment is not required during installation, so
installation is very convenient.
(4) It is recommended to install a filter screen at the pump inlet to prevent blockage.
(5)
Sufficient maintenance space shall be reserved for the pump during
installation to facilitate equipment maintenance in the later period.
8. Precautions
(1)
The removable pipe pump is used for suction, and it should be equipped
with a bottom valve. The inlet pipeline should not have too many bends,
and there should be no water or air leakage.
(2) Before the first
startup, the pump shaft and impeller should be free of friction sound or
seizure, otherwise the pump should be disassembled to check the cause.
(3) It is forbidden to work the mechanical seal under dry grinding.
(4)
When starting the pump, let the pump exhaust by loosening the exhaust
screw on the pump head until a steady flow of liquid flows out of the
exhaust hole, and then tighten the exhaust screw.
9. Frequently Asked Questions
(1) The water pump does not absorb water. It may be that the water injected into the pump is not enough,
(2)
Insufficient flow of water pump may be due to blockage of water pump,
excessive friction of sealing ring and insufficient rotation speed
(3) Excessive pump power may be used beyond the rated flow.
(4) Noise and vibration may be caused by unstable pipeline support, gas mixed with liquid, bearing damage, etc.
10. Use needs
(1)
Regularly check the pump performance (such as flow, lift, vibration,
etc.) and make records. The maintenance items and the interval time
between each maintenance depend on the working conditions and operating
conditions of the pump.
(2) It is prohibited to operate the pump under cavitation condition for a long time.
(3) It is prohibited to run the motor for a long time with excessive current when the pump is running at large flow.
(4)
The medium conveyed by the pump shall not contain air or gas,
otherwise, the flow and lift of the pump will not be measured
accurately, and the parts will be damaged by grinding.
(5) The
suction pipe of the pump shall be as short as possible, the pipe
diameter shall be greater than or equal to the diameter of the suction
inlet of the pump, and the bending radius of the suction pipe of the
pump shall be as large as possible.
ISGB Detachable Pipeline Centrifugal Pump: Complete Technical Guide
Introduction
The ISGB Detachable Pipeline Centrifugal Pump is a single-stage, inline pump designed for high-efficiency water transfer in industrial, commercial, and municipal applications. Its detachable design allows easy disassembly for inspection, cleaning, and maintenance without disconnecting the pipeline, making it highly convenient for continuous operation.
This guide covers the technical parameters, operating procedures, design philosophy, and product specification table to provide engineers, operators, and procurement professionals with an in-depth understanding of the ISGB pump.
Key Features
Detachable inline design: Simplifies maintenance and inspection.
Single-stage centrifugal operation: Efficient for water, low-viscosity liquids, and non-corrosive fluids.
Energy-efficient motors: Compatible with IE2/IE3 standards.
Low noise and vibration: Suitable for urban and industrial environments.
Durable construction: Cast iron, stainless steel, or bronze options.
Wide applications: HVAC, fire protection, municipal water supply, industrial circulation.
Technical Parameters
The ISGB pump series is designed for various flow rates and pressures to meet modern industrial and commercial needs.
Typical Range
| Parameter | Range |
|---|
| Flow capacity | 1.5 – 1200 m³/h |
| Head | 5 – 150 m |
| Power | 0.37 – 250 kW |
| Operating temperature | -20°C to +120°C |
| Operating pressure | ≤1.6 MPa |
| Materials | Cast iron, stainless steel, bronze |
| Seal type | Mechanical seal (single or double) |
| Installation | Inline, detachable structure |
Motor Compatibility
Standard motors: Three-phase or single-phase
Efficiency: IE2 or IE3 class
Protection: IP55 or higher
Design Philosophy
The ISGB Detachable Pipeline Centrifugal Pump integrates several design principles:
1. Maintenance-Oriented Design
2. Energy Efficiency
Hydraulic design optimized for minimal energy loss.
Smooth internal surfaces reduce friction and cavitation.
Compatible with variable frequency drives (VFD) for energy-saving operation.
3. Reliability and Durability
High-quality materials ensure resistance to corrosion, wear, and chemical damage.
Bearings and seals are selected to endure continuous operation.
Shock-resistant housing protects against vibration and hydraulic forces.
4. Versatility
Suitable for industrial, municipal, and commercial applications.
Handles clean water, low-viscosity liquids, and non-corrosive chemicals.
Adaptable to various piping systems and mounting requirements.
Operating Procedures
Installation Guidelines
Place the pump on a stable, vibration-free base.
Align the pump and motor shaft precisely to avoid bearing stress.
Ensure inlet and outlet valves are installed, including suction strainers to prevent debris.
Connect the electrical supply according to local safety regulations.
Verify grounding and motor wiring.
Start-Up Procedure
Prime the pump fully to prevent dry running.
Open the suction and discharge valves gradually.
Start the motor and monitor vibration, noise, and current.
Check system pressure and flow against design specifications.
Routine Operation
Maintain water quality to prevent scaling, corrosion, or cavitation.
Avoid frequent starts and stops that may reduce pump life.
Monitor bearings and mechanical seals regularly.
Shutdown Procedure
Close discharge valve slowly to prevent hydraulic shock.
Turn off the motor and allow the pump to cool.
Inspect for leaks or unusual vibration before restarting.
Product Parameters Table
| Model | Flow (m³/h) | Head (m) | Power (kW) | Voltage (V) | Material | Seal Type |
|---|
| ISGB-32 | 1.5–15 | 5–25 | 0.37–1.5 | 220/380 | Cast iron | Single mechanical seal |
| ISGB-40 | 3–25 | 8–35 | 0.55–3 | 380/415 | Cast iron | Single mechanical seal |
| ISGB-50 | 5–50 | 10–40 | 1.1–7.5 | 380/415 | Stainless steel | Single/Double seal |
| ISGB-65 | 10–100 | 12–50 | 2.2–15 | 380/415 | Stainless steel | Double seal |
| ISGB-80 | 20–200 | 15–60 | 4–30 | 380/415 | Bronze | Double seal |
| ISGB-100 | 50–400 | 20–80 | 7.5–55 | 380/415 | Cast iron | Double seal |
| ISGB-125 | 100–800 | 25–100 | 15–110 | 380/415 | Cast iron/Stainless | Double seal |
| ISGB-150 | 200–1200 | 30–150 | 30–250 | 380/415 | Stainless steel | Double seal |
Maintenance Guidelines
Routine Maintenance
Check noise, vibration, and temperature daily.
Inspect mechanical seals and bearings weekly.
Clean suction strainers and pipelines monthly.
Periodic Maintenance
| Task | Frequency | Notes |
|---|
| Bearing lubrication | Every 3–6 months | Use approved grease |
| Impeller inspection | Every 6–12 months | Clean debris and check wear |
| Mechanical seal replacement | Every 12 months | Prevent leakage |
| Motor inspection | Annually | Check insulation and electrical parameters |
| Full overhaul | Every 2–3 years | Replace bearings, seals, and worn parts |
Advantages of ISGB Pump
Detachable design: Easy maintenance without pipeline removal.
Compact inline structure: Space-saving and easy installation.
High efficiency: Reduces energy consumption and operational costs.
Durable materials: Resistant to corrosion and chemical damage.
Wide application: Suitable for HVAC, fire protection, industrial, and municipal systems.
Low noise operation: Suitable for urban and industrial environments.
SEO-Optimized Product Description (Meta)
The ISGB Detachable Pipeline Centrifugal Pump is a high-efficiency inline pump designed for easy maintenance and reliable operation in industrial, commercial, and municipal water systems. Its detachable design allows quick disassembly without disconnecting pipelines. With durable materials, low noise, energy-efficient motors, and precision hydraulic design, the ISGB pump is ideal for HVAC, fire protection, industrial water transfer, and booster applications. Compliant with international standards, it ensures long service life and stable performance.
Conclusion
The ISGB Detachable Pipeline Centrifugal Pump combines efficient hydraulic performance, easy maintenance, and durable construction for modern water transfer applications. By understanding its technical parameters, following proper operating procedures, and implementing a scheduled maintenance plan, users can ensure reliable performance, reduced downtime, and lower operational costs.
This guide equips engineers, buyers, and operators with detailed knowledge of installation, operation, and maintenance, making the ISGB pump a trusted choice for industrial, commercial, and municipal applications worldwide.
