1. Product introduction
GDL vertical
multistage centrifugal pump is a new generation product designed and
manufactured by our company based on the excellent pump types at home
and abroad, in combination with the user's requirements and relevant
fire standards, and in accordance with JB/TQ6435-92 standard. The
vertical segmental external stainless steel shell structure is adopted,
so that the inlet and outlet of the pump are on the same horizontal line
with the same caliber, and can be installed in the pipeline like a
valve. It also focuses on the high pressure of multi-stage pumps, the
small floor area of vertical pumps, and the convenient installation of
pipeline pumps. The utility model has the advantages of high efficiency,
energy saving, stable operation, etc., and the shaft seal adopts a
wear-resistant mechanical seal, which has a long service life without
leakage.

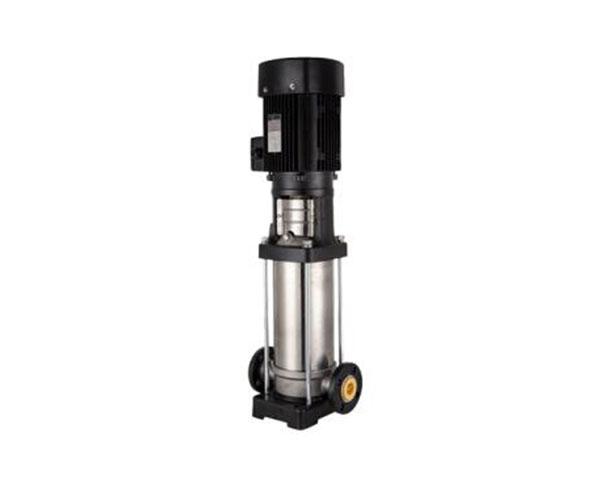

2. Product pictures
3. Scope of application
GDL vertical
multistage centrifugal pump is suitable for conveying clear water or
liquid with physical and chemical properties in high-pressure operation
system, such as water supply for high-rise buildings, boiler water
supply, fire protection system, etc. or for pipeline pressurization.
GDLF pump is made of integral stainless steel (ZG1Cr18Ni9Ti), which is
suitable for chemical, food, brewing, pharmaceutical, textile and other
industries. Stainless steel 304 or 316L can be customized according to
user requirements.
4. Product Features
1. Advanced hydraulic model, high efficiency and wide performance range.
2. The pump runs stably with low noise.
3. The mechanical seal of shaft seal is safe and reliable, simple in structure, and convenient in maintenance.
4. It can be installed in the pipeline like a valve.

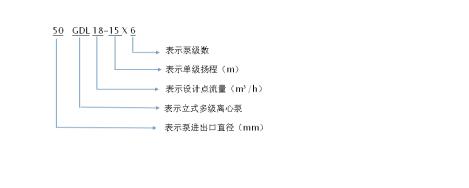

5. Model Meaning

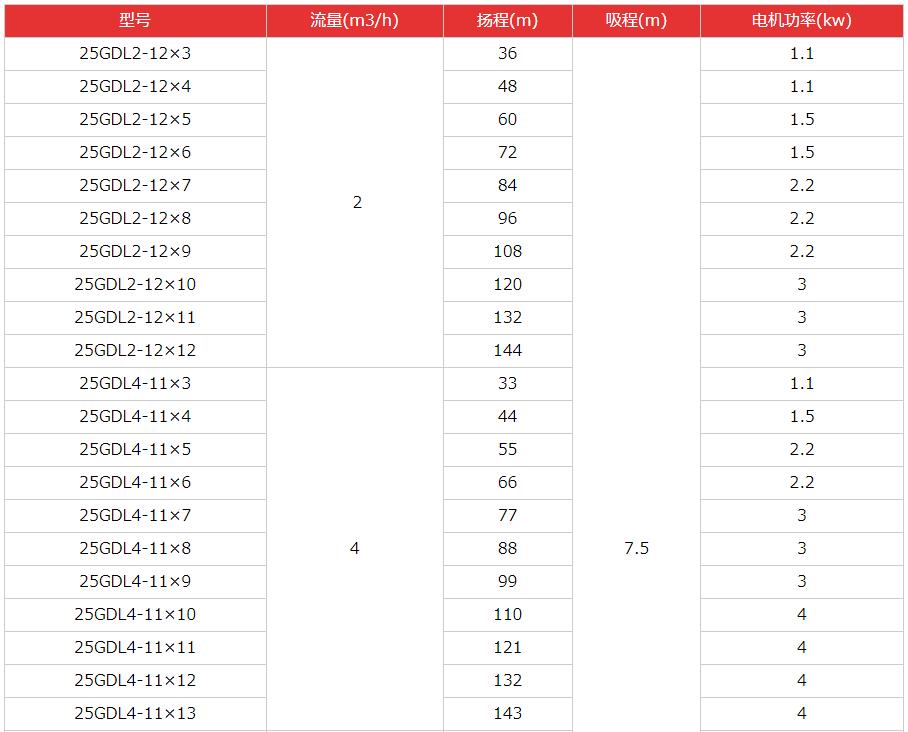

6. Specifications
7. Installation method
(1) GDL vertical
multistage centrifugal pump shall be installed vertically on the ground
to ensure sufficient cold air enters the motor cooling fan.
(2) It
is better to install anti-seismic fasteners on both sides of the pump
and between the foundation and the pump body to minimize the possible
noise generated by the pump.
(3) The specification and length of
the pipeline used shall be suitable and have sufficient pressure bearing
capacity to minimize the turning and accessories of the pipeline.
(4) It is recommended to install a filter screen at the pump inlet to prevent blockage.
(5)
Sufficient maintenance space shall be reserved for the pump during
installation to facilitate equipment maintenance in the later period.
8. Precautions
(1) Do not start the pump to check the rotation direction before the pump is filled with liquid.
(2) When checking the running direction of the motor, the coupling shall not be disassembled for inspection.
(3)
Before the pump is started, the isolation valve on the suction side of
the pump shall be fully opened and the isolation valve on the discharge
side shall be almost closed.
(4) When starting the pump, let the
pump vent by loosening the vent screw on the pump head until a steady
flow of liquid flows out of the vent hole, and then tighten the vent
screw.
9. Frequently Asked Questions
(1) The water pump does not absorb water. It may be that the water injected into the pump is not enough,
(2)
Insufficient flow of water pump may be due to blockage of water pump,
excessive friction of sealing ring and insufficient rotation speed
(3) Excessive pump power may be used beyond the rated flow.
(4) Noise and vibration may be caused by unstable pipeline support, gas mixed with liquid, bearing damage, etc.
10. Use needs
(1)
Regularly check the pump performance (such as flow, lift, vibration,
etc.) and make records. The maintenance items and the interval time
between each maintenance depend on the working conditions and operating
conditions of the pump.
(2) After the pump is started, do not
close the discharge valve or close it for a long time, otherwise the
liquid in the pump will overheat.
(3) When the pump stops, close
the discharge valve of the pump to the minimum flow, but never close the
suction valve of the pump.
(4) The medium conveyed by the pump
shall not contain air or gas, otherwise, the flow and lift of the pump
will not be measured accurately, and the parts will be damaged by
grinding.
(5) The suction pipe of the pump shall be as short as
possible, the pipe diameter shall be greater than or equal to the
diameter of the suction inlet of the pump, and the bending radius of the
suction pipe of the pump shall be as large as possible.
GDL Vertical Multistage Centrifugal Pump: Complete Guide for Industrial and Commercial Applications
The GDL vertical multistage centrifugal pump is a widely used fluid-handling solution designed to deliver high pressure, stable performance, and long service life. With its compact vertical structure and multi-stage impeller system, it is ideal for applications such as high-rise building water supply, boiler feed systems, cooling circulation, and municipal engineering. This article provides a detailed overview covering product certifications, maintenance frequency, parts list, and usage precautions, helping engineers, purchasing managers, and operators make informed decisions.
Product Overview of GDL Vertical Multistage Centrifugal Pump
The GDL series adopts a vertical multistage design, featuring multiple impellers installed in a stacked configuration to boost water pressure effectively. Its streamlined structure reduces installation space, making it suitable for environments where footprint is limited.
Key Advantages:
Compact vertical design, saving floor space
High efficiency with multi-stage impeller system
Low vibration and noise for continuous operation
Corrosion-resistant materials for durability
Easy maintenance and modular construction
Product Certifications
Product certification plays a crucial role in ensuring the safety, quality, and reliability of centrifugal pumps. The GDL vertical multistage centrifugal pump typically complies with international and regional standards required by different industries.
Common Certifications Include:
ISO 9001: Quality Management System Certification – ensures standardized manufacturing and consistent product quality.
CE Certification (Europe) – guarantees compliance with European safety, health, and environmental standards.
ISO 14001: Environmental Management Certification – indicates sustainable and eco-friendly manufacturing processes.
OHSAS 18001 / ISO 45001: Occupational Health & Safety – ensures worker safety during production and operation.
WRAS / NSF Certification (for potable water applications) – ensures pump materials are safe for drinking water systems.
Why Certifications Matter
Builds customer trust and global acceptance
Meets bidding requirements for government or municipal projects
Ensures safe use in sensitive applications such as drinking water supply
Supports export compliance across different regions
Maintenance Frequency
To ensure long service life and stable performance, the GDL vertical multistage centrifugal pump should be maintained regularly. A preventive maintenance schedule minimizes breakdowns and costly downtime.
Recommended Maintenance Schedule
| Maintenance Task | Frequency | Purpose |
|---|
| Visual inspection of pump and motor | Weekly | Detect leaks, noise, or vibration early |
| Check fasteners and alignment | Monthly | Prevent loosening due to vibration |
| Lubricate bearings | Every 3–6 months | Reduce friction and wear |
| Inspect seals and gaskets | Every 3–6 months | Prevent leakage |
| Replace worn impellers | Annually or as needed | Maintain hydraulic efficiency |
| Electrical system inspection | Annually | Ensure motor safety and reliability |
| Performance testing | Annually | Verify flow rate and pressure stability |
Benefits of Routine Maintenance
Extends service life of critical parts
Prevents unplanned downtime
Ensures energy efficiency
Reduces operational costs
Parts List of GDL Vertical Multistage Centrifugal Pump
The GDL pump consists of several precision-engineered components that work together to deliver consistent performance. Below is a breakdown of the key parts:
| Component | Description | Function |
|---|
| Pump Casing | Cast iron or stainless steel | Houses internal parts and withstands system pressure |
| Impellers | Multiple precision-cast impellers | Increase pressure with each stage |
| Shaft | High-strength stainless steel | Transfers rotational energy from motor to impellers |
| Shaft Sleeve | Protective cover on shaft | Reduces wear and protects against corrosion |
| Mechanical Seal | Ceramic, carbon, or tungsten carbide | Prevents leakage between pump and motor |
| Bearings | Anti-friction type | Supports shaft rotation and minimizes vibration |
| Motor | High-efficiency electric motor | Provides the driving force for pump operation |
| Coupling | Flexible connection between pump and motor | Ensures smooth power transmission |
| Base Plate | Rigid foundation support | Ensures stability and alignment |
Usage Precautions
Correct usage is essential for the safe operation and optimal efficiency of the GDL vertical multistage centrifugal pump.
Installation Precautions
Ensure a solid and level foundation before installation.
Verify proper alignment between the motor and pump shaft.
Install a strainer or filter at the pump inlet to prevent debris entry.
Provide sufficient clearance around the pump for maintenance access.
Operating Precautions
Never operate the pump without water (dry running causes severe seal damage).
Gradually open and close valves to avoid sudden pressure surges.
Monitor temperature, vibration, and noise during operation.
Ensure that the pump runs within the recommended flow range to avoid cavitation.
Safety Precautions
Disconnect power before performing any maintenance or repair.
Wear appropriate protective equipment when handling hot or pressurized fluids.
Use only genuine spare parts for replacement to maintain performance and safety.
Follow manufacturer’s instructions for lubrication, seal replacement, and alignment.
Applications of GDL Vertical Multistage Centrifugal Pump
The versatility of the GDL pump makes it suitable for multiple sectors:
Municipal Engineering: Water distribution and pressure boosting
High-Rise Buildings: Constant pressure water supply
Boiler Feed Systems: Stable and efficient hot water circulation
Industrial Processes: Cooling systems, chemical transfer, and washing equipment
Agricultural Irrigation: Reliable water delivery for farming and irrigation projects
Conclusion
The GDL vertical multistage centrifugal pump is a high-performance, space-saving, and energy-efficient pumping solution designed for demanding industrial and commercial environments. With proper certifications, routine maintenance, and careful operation, it offers long service life and reliable water supply.
By understanding its certifications, maintenance frequency, key components, and usage precautions, users can maximize pump efficiency and reduce long-term operating costs. Whether for municipal projects, industrial plants, or building water systems, the GDL vertical multistage centrifugal pump remains a trusted choice for stable and efficient water handling.
