Explosion-proof Permanent magnet axial flow pump, with a variety of automatic functions, belongs to a new generation of DC frequency conversion technology electric pump. Electric pump small size and light weight, 5000 RPM/time can reach the same specification of asynchronous motor power 4-5 times, 3000 RPM/time, can be more than twice the power of the same specification of asynchronous motor. The efficiency is more than 90, reaching the national secondary energy consumption standards.
1.low loss, low temperature rise
Because the magnetic field of the electric pump is generated by the permanent magnet, the excitation loss caused by the excitation current to generate the magnetic field is avoided, that is, the copper loss; The rotor runs without current, significantly reducing the temperature rise of the motor, and the temperature rise is more than 20K lower under the same load.
2.high power factor
The power factor of the electric pump is high, and is independent of the motor series, the power factor of the motor is close to 1 when the motor is full load, so that compared with the asynchronous motor, the motor current is smaller, and the stator copper consumption of the motor is correspondingly smaller and the efficiency is higher. With the increase of motor series, the power factor of asynchronous motor is lower and lower. Moreover, because of the high power factor of the permanent magnet synchronous motor, the power supply (transformer) capacity of the motor can theoretically be reduced, and the supporting switchgear and cable specifications can be reduced.
3.high efficiency
Compared with the asynchronous motor, the efficiency value of the electric pump in light load is much higher, its efficient operation range is wide, the efficiency is greater than 90% in the range of 25% ~ 120%, and the rated efficiency of the permanent magnet synchronous motor can reach the current national standard level 1 energy efficiency requirements, which is its biggest advantage compared with the asynchronous motor in energy saving. In actual operation, the motor rarely runs at full power when driving the load. The reason is: on the one hand, the designer in the motor selection, is generally based on the load limit condition to determine the motor power, and the limit condition of the opportunity is very few, at the same time, in order to prevent the abnormal condition of the motor burning, the design will further to the motor power margin; On the other hand, in order to ensure the reliability of the motor, the motor manufacturer usually leaves a certain power margin on the basis of the power required by the user.
4. Other advantages
The electric pump also has the advantages of high starting torque, short starting time and high overload capacity, which can reduce the installed capacity of the equipment drive motor according to the actual shaft power, saving energy and reducing the investment in fixed assets. The permanent magnet synchronous motor is easy to control, the speed is constant, does not change with the fluctuation of the load and the fluctuation of the voltage, and only depends on the frequency, and the operation is stable and reliable. Because the speed is strictly synchronized, the dynamic response performance is good, suitable for frequency conversion control.

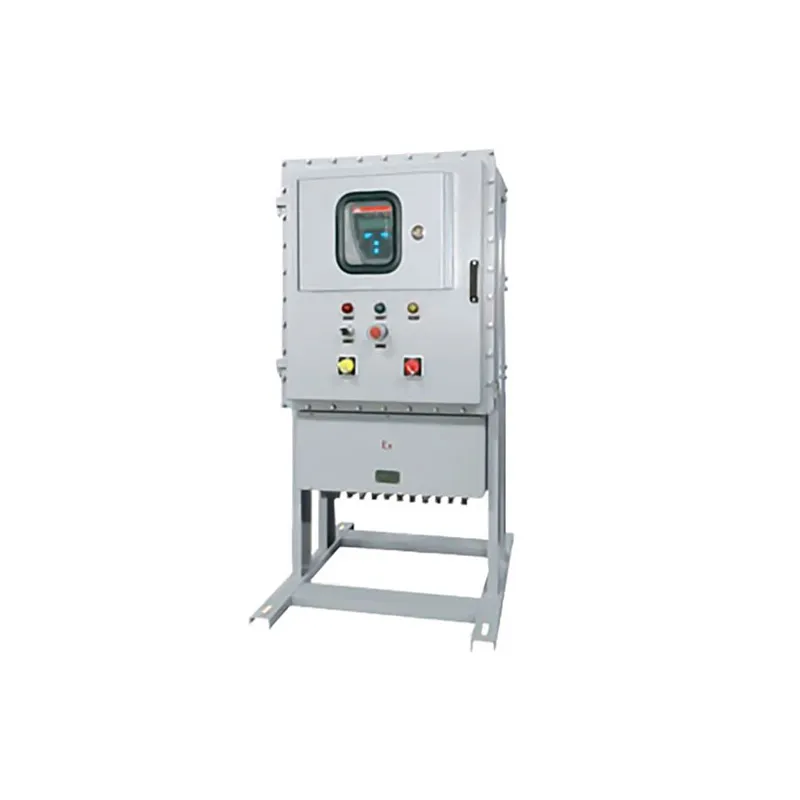

Explosion-Proof Type Control Cabinet: Comprehensive Guide
Introduction
The Explosion-Proof Type Control Cabinet is an essential electrical enclosure designed to ensure safe operation in hazardous environments such as chemical plants, oil refineries, gas stations, and industrial manufacturing facilities. These cabinets are built to prevent ignition of flammable gases, vapors, or dust, thereby safeguarding personnel and equipment. This guide provides a comprehensive overview of explosion-proof control cabinets, including environmental standards, performance testing, inspection and maintenance, and installation procedures.
H2: Environmental Standards Compliance
H3: Global Certification and Standards
Explosion-proof control cabinets must comply with stringent environmental and safety regulations. Some of the widely recognized standards include:
| Standard | Region | Description |
|---|
| ATEX | Europe | Equipment approved for explosive atmospheres |
| IECEx | International | Certification for electrical equipment in hazardous areas |
| UL 508A | USA | Standard for industrial control panels |
| ISO 14001 | Global | Environmental management system compliance |
Key Considerations:
Cabinets should be made from eco-friendly materials, minimizing toxic emissions during manufacturing.
Surface coatings should resist corrosion while being safe for the environment.
Waste and packaging materials should comply with local environmental regulations.
H3: Eco-Friendly Material Selection
Choosing environmentally responsible materials enhances sustainability. Popular choices include:
Stainless steel: Corrosion-resistant and recyclable.
Aluminum alloys: Lightweight, durable, and eco-friendly.
Powder-coated finishes: Reduce harmful VOC emissions compared to traditional paints.
H2: Performance Testing
H3: Electrical Safety Tests
To ensure safety in hazardous zones, explosion-proof control cabinets undergo rigorous testing:
Dielectric Strength Test: Verifies insulation resistance.
Ground Continuity Test: Ensures proper grounding of metal components.
Overload Protection Test: Checks circuit breakers and fuses.
H3: Mechanical and Environmental Tests
Ingress Protection (IP) Testing: Confirms resistance to dust and water.
Corrosion Resistance Test: Evaluates durability in harsh industrial conditions.
Temperature and Humidity Test: Assesses performance under extreme conditions.
H3: Performance Data Table
| Test Type | Standard | Result Requirement |
|---|
| Dielectric Strength | IEC 60529 | ≥ 2000 V AC |
| Ground Continuity | UL 508A | ≤ 0.5 Ω |
| IP Rating | IEC 60529 | IP65 or higher |
| Corrosion Resistance | ISO 9227 | ≥ 480 hours salt spray |
| Temperature | IEC 60079 | -20°C to +60°C |
H2: Inspection and Maintenance
H3: Routine Inspection Guidelines
Regular inspection ensures long-term reliability and safety:
Visual Inspection: Check for corrosion, dents, or loose components.
Electrical Testing: Verify insulation resistance and proper grounding.
Seal Integrity: Inspect gaskets and entry points for wear.
H3: Maintenance Procedures
Cleaning: Remove dust and debris using non-sparking tools.
Component Replacement: Replace damaged fuses, switches, or relays promptly.
Lubrication: Apply anti-corrosion lubricants to hinges and locks.
Documentation: Maintain logs for inspections, maintenance, and repairs.
H2: Installation Steps
H3: Pre-Installation Preparation
Review the hazardous area classification (Zones 1, 2, 21, 22).
Verify cabinet dimensions and weight for mounting supports.
Ensure compliance with local electrical codes and ATEX/IECEx certifications.
H3: Step-by-Step Installation
Mounting the Cabinet: Use corrosion-resistant brackets and secure to a stable surface.
Electrical Connections: Connect power supply and grounding conductors according to schematic diagrams.
Cable Entry Sealing: Use explosion-proof cable glands to maintain enclosure integrity.
Internal Wiring: Arrange wires neatly, ensuring no sharp bends or tension.
Functional Testing: Power on the system and check operation of all components.
Final Inspection: Confirm that seals, bolts, and labels are properly in place.
H3: Installation Safety Tips
Only trained personnel should install explosion-proof cabinets.
Avoid over-tightening bolts, which can compromise sealing.
Verify ambient temperature and humidity limits before energizing.
H2: Advantages of Explosion-Proof Control Cabinets
| Advantage | Description |
|---|
| Safety | Prevents ignition of flammable gases or dust |
| Durability | Resistant to corrosion, heat, and mechanical impact |
| Compliance | Meets global standards (ATEX, IECEx, UL) |
| Low Maintenance | Long service life with minimal intervention |
| Environmental | Eco-friendly materials and coatings |
H2: Conclusion
The Explosion-Proof Type Control Cabinet is a critical component for maintaining safe and efficient operations in hazardous industrial environments. Compliance with global environmental and safety standards, rigorous performance testing, regular inspection and maintenance, and proper installation are key to ensuring reliable performance. By investing in high-quality, certified explosion-proof cabinets, industries can protect personnel, equipment, and the environment while optimizing operational efficiency.
