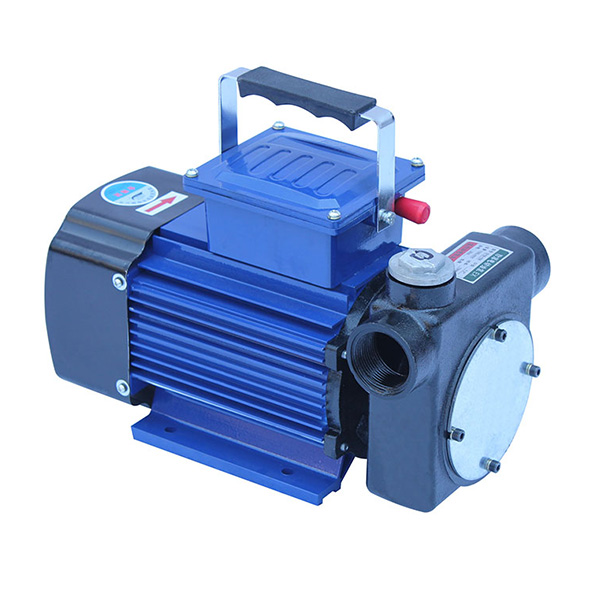

DYB150 Ex Portable Large Flow Explosion-Proof Series

The DYB150 Ex Portable Large Flow Explosion-Proof Series is a high-performance, industrial-grade pump designed for safe and efficient fluid transfer in hazardous environments. Engineered with explosion-proof technology, it ensures reliable operation in flammable or combustible conditions, while its portable, large-flow design allows easy deployment across construction, chemical, and municipal applications. This series combines robust materials, energy-efficient performance, and user-friendly installation, making it ideal for industries requiring both safety and high throughput.

Inquiry

E-mail：haiwan@haiwanpump.cn

WhatsApp：8618968868555

Detailed Description
Product Encyclopedia

The single-phase explosion-proof electric oil pump has undergone strict temperature and shock resistance tests, and the protection level is IP55. The oil pump can run continuously, mechanical seal, anti-corrosion coating, built-in bypass protection valve, high quality, safe and reliable. Use household electricity, super self-priming, fast refueling, install bottom valve with filter, clean diesel. The pump is exquisitely designed, suitable for all kinds of construction machinery, and overcomes the difficulty of refueling on the construction site.

1. For gasoline, diesel, kerosene, gasoline methanol;

2. Vane pump, corrosion-resistant oil seal, safe and reliable;

3. Cast iron pump body, anti-corrosion coating;

220V explosion-proof motor IP55

4. Built-in 100 micron filter, easy to clean;

5. Cast aluminum motor, protection grade IP55;

6. Continuous operation;

7. Built-in relief valve

Technical Specification
Model	Size(mm)	Flow(L/min)	Head(m)	Power(KW)	Valtage(V)	Speed(rpm）	Material	Impellererial
DYB-150EX	32	150	15	0.75 Explosion-Proof	220	1450	Cast Iron	Powder Metallurgy/Copper Impeller
DYB-80EX	32	150	20	1.1 Explosion-Proof	220	2900	Cast Iron	Copper Impeller

DYB150 Ex Portable Large Flow Explosion-Proof Series

Introduction

The DYB150 Ex Portable Large Flow Explosion-Proof Series represents a cutting-edge solution for industries requiring high-capacity, safe, and reliable fluid transfer in potentially hazardous environments. With an emphasis on explosion-proof design, portability, and operational efficiency, this pump series is widely used in chemical processing plants, oil and gas facilities, municipal water management, and industrial construction sites.

This article covers its product certification, structural design, operational precautions, and maintenance cycles, providing detailed insights for engineers, procurement managers, and industrial operators.

Product Certification

Ensuring compliance with international safety and quality standards is paramount for explosion-proof equipment. The DYB150 Ex Series adheres to:

Certification	Description	Applicability
ATEX	European Union certification for equipment used in explosive atmospheres	Chemical, oil, gas industries
IECEx	International certification for explosion-proof electrical equipment	Global industrial operations
ISO 9001	Quality management system compliance	Manufacturing, production, and supply chain control
CE Marking	Compliance with EU safety, health, and environmental standards	Europe market

These certifications ensure that the DYB150 Ex Series is compliant with global safety regulations, allowing its use in hazardous zones while minimizing operational risk.

Structural Design

The structural integrity of the DYB150 Ex Series is engineered to provide durability, safety, and ease of use.

Key Components

Explosion-Proof Motor

Enclosed motor housing prevents sparks or overheating in flammable environments.
Rated for continuous operation under high load conditions.

Pump Casing

High-strength cast iron or stainless steel material for durability and chemical resistance.
Designed for high flow rates and smooth fluid handling.

Impeller System

Precision-engineered to minimize cavitation and maximize efficiency.
Available in single or multi-stage designs depending on application requirements.

Sealing Mechanism

Double mechanical seals prevent leakage.
Suitable for handling corrosive or hazardous liquids.

Portability Features

Integrated wheels and ergonomic handles for easy transport across industrial sites.
Compact footprint while maintaining large flow capacity.

Technical Specifications (Typical)

Parameter	Specification
Flow Rate	Up to 150 m³/h
Maximum Head	50 meters
Motor Power	22 kW – 37 kW
Voltage	380V / 3-phase explosion-proof
Inlet/Outlet Diameter	150 mm
Material	Stainless Steel / Cast Iron
Protection Class	IP68

Operational Precautions

To ensure safety and prolong the life of the DYB150 Ex Series, operators must adhere to the following precautions:

Installation Site

Ensure the installation site is free from obstacles and allows proper ventilation.
Avoid exposure to extreme temperatures beyond the pump’s rated limits.

Electrical Safety

Confirm compatibility with the voltage and phase specified on the pump rating plate.
All electrical connections must be performed by certified technicians.

Flammable Liquids Handling

Always use the pump in areas compliant with explosion-proof zoning.
Avoid dry running to prevent motor overheating and seal damage.

Transport and Setup

Use proper lifting equipment to prevent structural damage.
Verify alignment and secure connections before operation.

Maintenance Cycle

Regular maintenance is essential for the safe and efficient operation of the DYB150 Ex Series.

Maintenance Interval	Tasks	Notes
Daily	Check for leaks, unusual vibrations, or noise	Record in operational log
Weekly	Inspect mechanical seals, tighten bolts, inspect cable insulation	Replace damaged components immediately
Monthly	Lubricate bearings, verify impeller condition	Ensure compliance with manufacturer guidelines
Quarterly	Electrical inspection, performance testing	Certified electrician recommended
Annually	Full disassembly for detailed inspection, part replacement as needed	Align with ISO and IECEx compliance checks

Proper maintenance extends service life, reduces downtime, and ensures operational efficiency while maintaining explosion-proof safety standards.

Applications

The DYB150 Ex Series is ideal for:

Chemical and Petrochemical Plants: Safe transfer of volatile liquids.
Oil and Gas Industry: Handling hydrocarbons in hazardous zones.
Municipal Water and Wastewater Systems: Efficient pumping in treatment plants.
Industrial Construction Sites: High-capacity fluid transfer for dewatering and site support.

Its combination of large flow, portability, and explosion-proof design makes it versatile across multiple sectors.

Conclusion

The DYB150 Ex Portable Large Flow Explosion-Proof Series offers a robust, safe, and efficient solution for demanding industrial environments. With its certified explosion-proof design, durable structure, and user-friendly maintenance cycle, it ensures reliability and safety in critical operations. Proper adherence to installation guidelines, operational precautions, and regular maintenance maximizes performance and lifespan, making it a valuable investment for industrial fluid transfer applications.
