Overview of BAW stainless steel sanitary centrifugal pump:
The
sanitary centrifugal pump is a single suction, single-stage, centrifugal
sanitary pump, which is suitable for conveying various liquids such as
milk, beverage, wine, etc. It is an indispensable conveying equipment in
food, chemical, pharmaceutical and other industries. The suction
temperature is about 80 º C. The high lift pump is especially suitable
for applications in systems with large resistance such as tubular
sterilization, yogurt temperature holding equipment, CIP cleaning, etc.

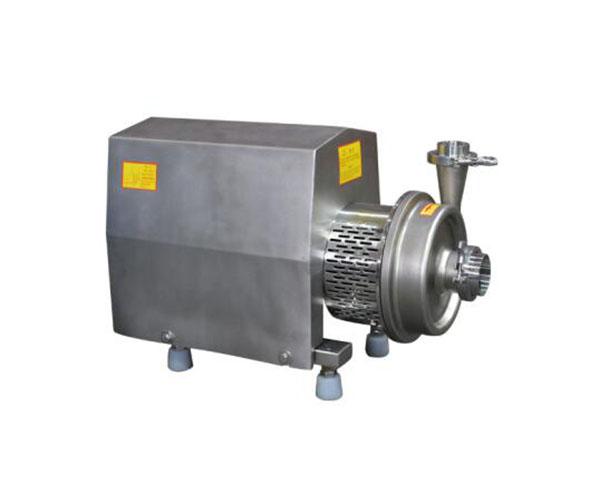

Picture of BAW stainless steel sanitary centrifugal pump
Structural features of BAW stainless steel sanitary centrifugal pump:
This series of sanitary centrifugal pump is mainly composed of pump body, pump seat and motor. Each part is connected by bolts.
The
support foot under the base plate can be adjusted freely for easy
installation without fixed installation foundation. During installation,
the outlet pipe can be installed in vertical or horizontal direction
according to different needs.
This series of pumps are designed with smooth transition, rigid structure and thick wall design.
In
the selection of materials, the pump body, pump cover, impeller and
other parts in contact with materials are all made of AISI316
Or AISI304 stainless steel.
The
mechanical shaft seal is made of high-quality stainless steel and
silicon carbide. It greatly improves the wear resistance and
moisturizing type, and prolongs the service life.
"ABB" motor with IP55. F insulation and wide voltage structure is selected.
During
fabrication, the pump body and impeller are precision cast integrally,
and all parts are surface treated. The dimension clearance shall be
ensured by special fixture during installation.
The shaft seal
adopts an open structure, so even if there is a small amount of leakage
at the shaft seal, it can be observed in time. The motor will not
overflow even if it is not detected for a short time. Thus, the service
life of the motor is guaranteed.
This series of pumps are fine and not easy to scale, especially suitable for CIP cleaning.
This
series of pumps has simple structure, convenient disassembly, low
noise, high efficiency, and gentle material handling, which meets the
requirements of food hygiene and ensures the original flavor of the
product.

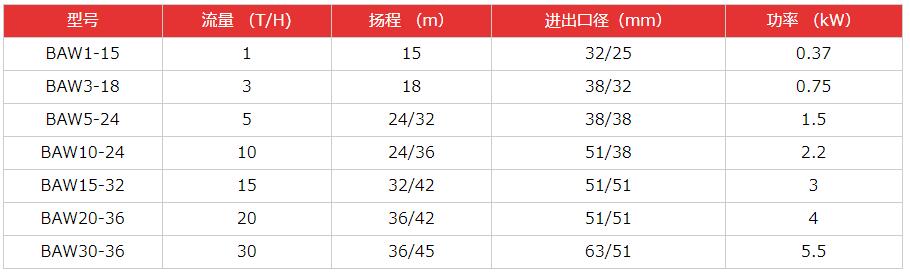

Model selection parameters of BAW stainless steel sanitary centrifugal pump:
This data is for reference only, please refer to the actual order!
Instructions for BAW stainless steel sanitary centrifugal pump:
During
centrifugal sanitary installation, the position of the pump is lower
than the suction liquid level (if the installation position of the pump
is higher than the suction liquid level, tank pump is required before
starting the pump). Before use, check whether the rotation direction of
the impeller is correct; Whether the nuts of the pump inlet and outlet
pipe joints are tightened; The sealing ring between the pump cover and
the pump body is well padded. The parts in contact with materials shall
be sterilized with steam before use to ensure food hygiene.
A
butterfly valve shall be installed at the pump outlet to control the
flow. Do not operate under overload for a long time to avoid damaging
the motor.
CIP cleaning shall be carried out immediately after the
pump is used to prevent material adhesion. If there is no CIP, manual
cleaning is required. During cleaning, hot water can be used first, and
then disassembled. Brush all parts of the pump in contact with materials
with a brush, and then rinse them with clean water. After cleaning,
install them in order.
If material drops on the ground behind the
pump casing during use, it indicates that the shaft seal is leaking. At
this time, the mechanical seal device on the shaft can be checked. If it
is severely worn or the seal is damaged, it should be replaced or
ground before use.
BAW sanitary centrifugal pump: Complete Guide for Industrial and Hygienic Applications
Introduction
The BAW Sanitary Centrifugal Pump is a high-performance, hygienic pump designed to ensure efficient, reliable, and contamination-free fluid transfer in food, beverage, pharmaceutical, and chemical industries. Built with corrosion-resistant materials and equipped with sanitary connections, the pump guarantees safe handling of sensitive liquids while providing consistent flow and energy-efficient operation. This comprehensive guide covers daily maintenance, material specifications, operational tips, and performance testing to maximize pump efficiency and lifespan.
H2: Material Specifications
H3: Pump Body and Impeller
Constructed from 316L stainless steel, ensuring corrosion resistance, durability, and sanitary compliance.
Smooth internal surfaces minimize dead zones and prevent microbial growth.
Polished surfaces meet food-grade and pharmaceutical hygiene standards.
H3: Seals and Gaskets
Equipped with EPDM or PTFE gaskets, offering excellent chemical resistance and durability.
Mechanical seals provide leak-free operation and prevent contamination.
O-rings are FDA-compliant and suitable for high-temperature fluids.
H3: Bearings and Shaft
High-quality stainless steel shafts designed for reliable operation under continuous use.
Bearings are lubricated for long service life and minimal maintenance.
Shaft seals ensure smooth operation with minimal friction and energy loss.
| Component | Material | Key Benefit |
|---|
| Pump Body | 316L Stainless Steel | Corrosion-resistant, hygienic |
| Impeller | 316L Stainless Steel | Smooth fluid flow, durable |
| Seals/Gaskets | PTFE / EPDM | Leak-free, chemical-resistant |
| Shaft | Stainless Steel | Reliable, low-friction |
| Bearings | Lubricated Stainless Steel | Extended service life |
H2: Daily Maintenance Guidelines
H3: Routine Inspection
Check pump connections and fittings for leakage or wear.
Inspect seals and gaskets for cracks, deformation, or chemical degradation.
Monitor vibration and noise levels for early detection of potential issues.
H3: Cleaning Procedures
Use approved sanitizing agents compatible with stainless steel and gaskets.
Flush the pump with clean water after each batch to remove residue.
Perform CIP (Clean-in-Place) or SIP (Sterilization-in-Place) if integrated into processing lines.
H3: Lubrication and Bearing Care
Bearings are factory-lubricated, but check lubrication periodically for extended lifespan.
Avoid over-lubrication, which can lead to contamination or bearing damage.
Ensure proper alignment of the shaft to prevent premature wear.
H2: Operational Tips
H3: Pre-Operation Checks
Verify fluid compatibility with pump materials.
Ensure all sanitary clamps and connections are tightened properly.
Confirm that valves, pressure gauges, and flow meters are functional.
H3: Startup Procedures
Prime the pump by filling it with liquid to avoid dry running.
Gradually increase pump speed to operational levels.
Monitor pressure and flow to ensure steady and consistent operation.
H3: Operating Conditions
Maximum temperature: 90°C (194°F) for standard gaskets.
Maximum pressure: 6 bar (87 psi), depending on installation and fluid.
Avoid running the pump at high speed with air pockets to prevent cavitation.
| Operation Step | Recommendation | Notes |
|---|
| Priming | Fill pump with liquid | Prevents dry running |
| Speed Adjustment | Gradually increase | Ensure stable flow |
| Pressure Monitoring | Check gauges | Avoid overpressure |
| Cleaning | Flush after use | Maintain hygiene |
H2: Performance Testing
H3: Flow Rate Verification
Test the pump at multiple speeds to verify rated flow range.
Use calibrated flow meters to ensure accuracy and consistency.
Adjust pump settings if flow rate deviates from specifications.
H3: Pressure Testing
H3: Efficiency Evaluation
Measure energy consumption versus flow rate to assess efficiency.
Optimize pump speed and system configuration to reduce energy costs.
Document test results for future reference and maintenance planning.
| Test Type | Method | Target Outcome |
|---|
| Flow Rate | Calibrated flow meter | Consistent with rated capacity |
| Pressure | Hydrostatic test | No leaks, within pressure limit |
| Efficiency | Energy vs. flow measurement | Optimal energy consumption |
H2: Advantages of BAW Sanitary Centrifugal Pump
| Feature | Benefit |
|---|
| Hygienic Design | Prevents contamination, meets food/pharma standards |
| Corrosion-Resistant Materials | Ensures long service life in demanding environments |
| Easy-to-Clean | Reduces downtime and maintenance efforts |
| Reliable Operation | Low vibration, minimal noise, steady flow |
| Energy Efficient | Optimized impeller and pump design |
H2: Conclusion
The BAW Sanitary Centrifugal Pump is a reliable and high-performance solution for industries requiring hygienic and efficient fluid transfer. Its robust stainless steel construction, easy-to-clean components, and precise operation ensure contamination-free performance. By following daily maintenance, proper operation, and performance testing guidelines, users can extend the pump’s service life, maintain hygiene standards, and optimize energy efficiency. Ideal for food, beverage, pharmaceutical, and chemical applications, the BAW Sanitary Centrifugal Pump provides a durable, safe, and energy-efficient pumping solution.
